DTX-MB™ Advanced Air Purifier

TECHNOLOGY

The Respicaire DTX MB™ Advanced Air Purifier uses a proprietary Tri-Process system to treat air inside commercial buildings. This unit installs inside commercial RTUs and AHUs up to 50 tons. They are suited for various sensitive spaces such as labs, brewing spaces, schools, offices, and daycares. The first process uses High Intensity UVC Germicidal wavelength technology. This works to inactivate airborne bacteria, viruses, molds, and other pathogens. The UVC rays also provide surface treatment for HVAC coils. Microorganisms cannot escape the potent UVC rays, which attack their DNA directly. The second process uses built-in Advanced Carbon Matrix Cells. These cells absorb airborne odors and gases as air passes through the unit. The dedicated advanced carbon media ensures maximum absorption performance. The third process is Photo-Catalytic Oxidation (PCO). The PCO Matrix creates multiple air cleansers that help oxidize and detox airborne VOCs and odors. This process also works on microorganisms for added protection. Third-party lab tests have shown 99% inactivation of coronavirus (SARS-CoV-2) in seconds. This unique combination of three technologies enhances air purification by constantly treating indoor air as it recirculates through HVAC systems.

FEATURES

• High Intensity UVC Lamps: Solid performance designed to inactivate airborne pathogens and treat HVAC coil surfaces.
• Advanced Carbon Matrix Cells: Dedicated carbon system that absorbs airborne odors and gases effectively.
• PCO Reactive Media: Photo-catalytic oxidation matrix creates air cleansers to oxidize VOCs and odors.
• Magnet Mount Brackets: Secure mounting system allows fast installation and easy servicing access.
• Commercial Capacity: Designed for RTUs and AHUs up to 50 tons for larger building applications.
• Zero Ozone Operation: UL 2998 & Carb certified for zero ozone emissions
• Third-Party Tested: Lab-verified performance and efficacy for reliable results.
• A2L: Compliant for A2L installations

BENEFITS

• Helps inactivate airborne viruses, bacteria, mold spores, and yeast to reduce illness risk in occupied spaces.
• Controls microbial buildup on evaporator coils to maintain HVAC energy efficiency and lower operating costs.
• Reduces or minimizes common VOCs and chemical odors for fresher, healthier indoor environments.
• Helps provide continuous air treatment as air recirculates through the HVAC system throughout the day.
• Supports cleaner air in offices, schools, labs, spas, and other commercial indoor spaces.
• Helps create a cleaner breathing environment for employees, students, patients, and visitors.
• Addresses multiple air quality concerns with one integrated unit instead of separate systems.

MAINTENANCE

The DTX MB™ features magnet mount brackets that allow quick access for servicing. UV lamps should be inspected periodically and replaced according to manufacturer recommendations to maintain optimal air purification performance. Carbon matrix cells and PCO media require periodic replacement based on usage and air quality conditions. The product design and magnetic mounting system make lamp and media replacement straightforward for technicians. All genuine replacement lamps and parts are available through Respicaire’ s network of stocking HVAC Distributors and Contractors. Contact Respicaire directly if you are unable to locate the parts locally.

Frequently Asked Questions

Have questions about the Respicaire DTX MB™? Here are answers to common questions about this commercial air purifier.

• What size HVAC system can the DTX MB™ handle? The DTX MB™ is designed for commercial RTUs and AHUs up to 50 tons. This makes it suitable for offices, schools, labs, spas, and similar commercial spaces.
• Does the DTX MB™ produce ozone? No, the DTX MB™ produces zero ozone and utilizes three reliable air cleansing technologies. It delivers powerful air treatment and is Carb certified & UL 2998 validated for zero ozone emissions.
• How does the three-process system work together? UVC rays inactivate airborne pathogens, carbon cells absorb odors and gases, and PCO oxidizes VOCs. All three processes work continuously as air circulates through your HVAC system.
• Has the DTX MB™ been tested against viruses? Yes, third-party lab tests have shown 99% inactivation of coronavirus (SARS-CoV-2) in seconds. The unit is tested for performance and efficacy.

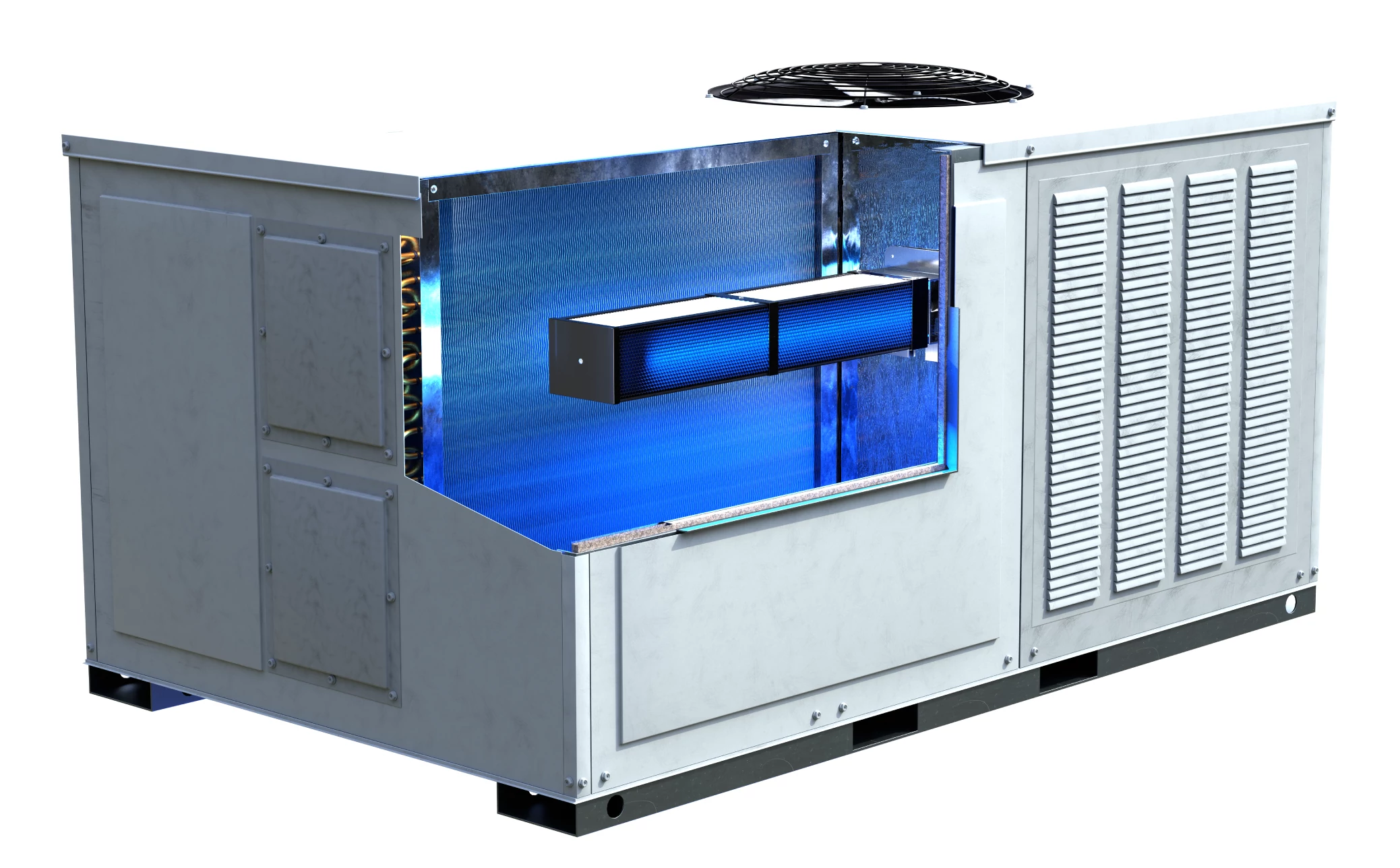

• Where does the DTX MB™ install? The unit installs internally inside commercial RTUs and AHUs. Magnet mount brackets provide secure mounting and allow fast installation and servicing.
