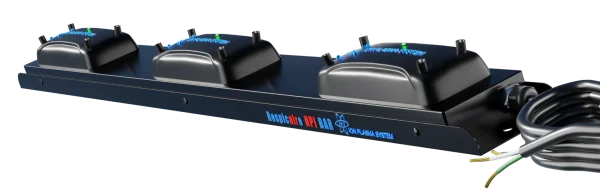

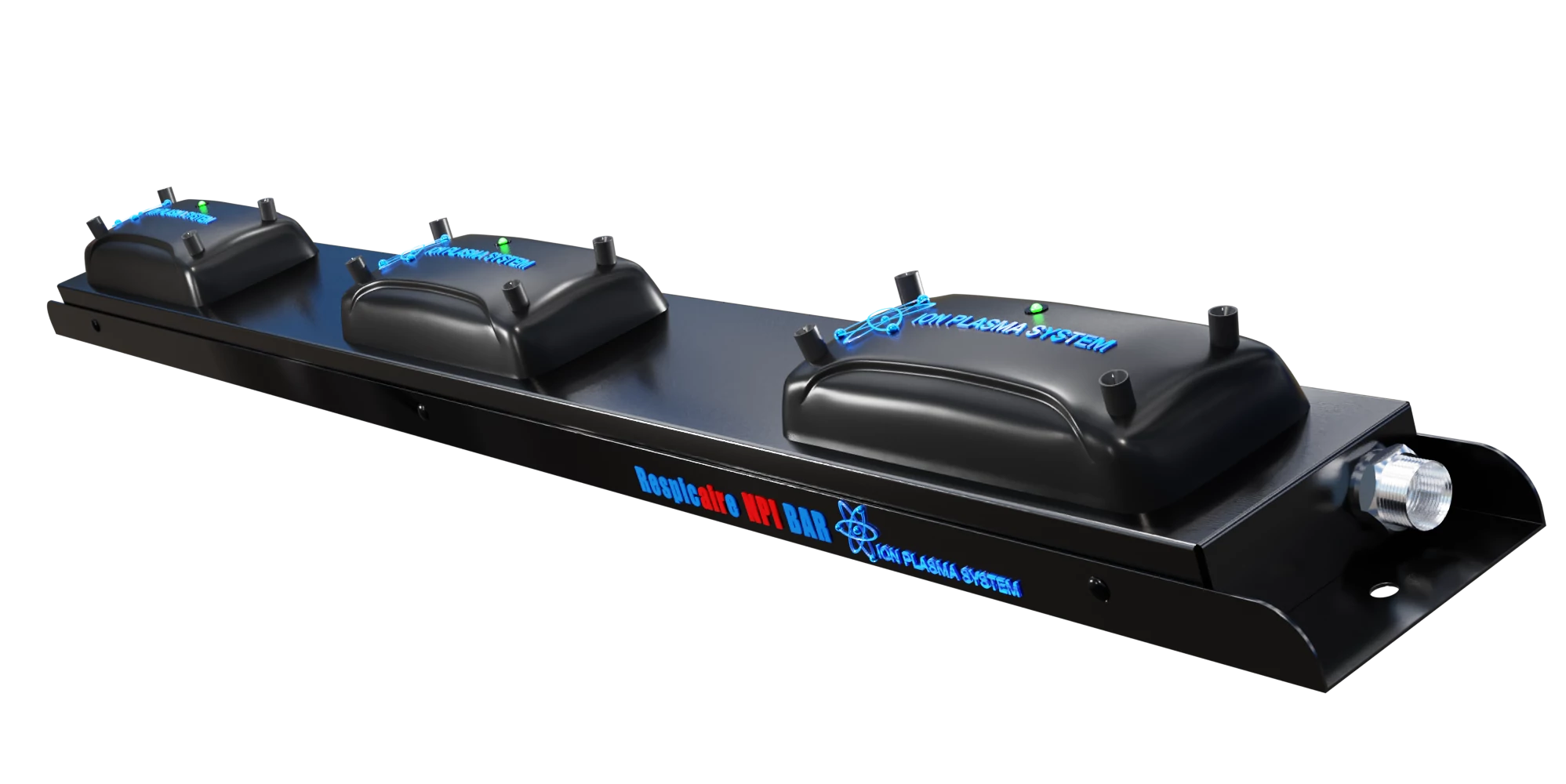

NPI BAR™ Bi-Polar Ionizer
Advanced Commercial bi-polar ionization system designed to deliver cleaner, healthier air in commercial buildings. What you need to know about this product:
- Patented NPI self-cleansing Venturi design
- Designed for commercial RTUs and AHUs
- Suitable for 7.5 to 150 ton systems
- Multiple voltage options available
- UL 2998 verified zero ozone
TECHNOLOGY
The NPI BAR™ from Respicaire uses needlepoint bi-polar ionization to clean indoor air. This modular bar system creates vast amounts of positive and negative ions that travel through commercial HVAC systems. These ions work on airborne particles and germs as air moves through your ducts. Each bar features unique Venturi Emission posts with tungsten needles. This design maximizes ion output for better air treatment. The ions attach to pollutants like pollen, dust, allergens, smoke, and microorganisms. Once attached, these particles clump together to form larger particulates to optimize filtration. When sized properly, NPI Bars™ can also help with some odors. The NPI BAR™ works inside commercial rooftop units (RTUs) and air handling units (AHUs). The NPI Bars are typically installed prior to the filtration system. They can also be installed at the coil after the filtration system. The NPI Bar™ can daisy chain for systems ranging from 7.5 tons to 150 tons. The system works around the clock to treat indoor air in commercial spaces continuously.FEATURES
- Venturi Emission Posts: Patented tungsten needle design that optimizes ion output for maximum air treatment effectiveness.
- Modular Design: Allows multiple bars to connect under a single 24V connection for flexible installation in larger systems.
- Multiple Voltage Options: Available in dedicated voltages
- 12 Emission Points Per Bar: Each unit delivers consistent positive and negative ion production through tungsten needles.
- Wide System Compatibility: Designed for commercial RTUs and AHUs from 7.5 ton to 150-ton capacity.
- Self-Cleansing Technology: Patented design reduces buildup on emission points for reliable long-term performance.
- Carb Certifed: Tested & Verified for zero ozone emissions
- Flexible Mounting: NPI Bar can be installed individually or in a daisy chain configuration.
- Smart Rack™: For larger systems, we offer a customizable support rack for fast and professional setup.
- A2L: Compliant for A2L installations
BENEFITS
- Helps reduce airborne viruses, mold spores, and other microorganisms as air passes through your HVAC system, supporting healthier indoor spaces.
- Causes airborne particles like dust, smoke, and allergens to clump together, making them easier for your filtration system to capture.
- Helps control biofilm buildup on evaporator coils, which can improve HVAC efficiency and reduce maintenance needs.
- Helps provide around-the-clock air treatment for fresher, cleaner indoor air.
- Works with your existing filtration to improve overall particle collection, helping you get more from your current air cleaning setup.
- Uses natural ion plasma technology to address airborne contaminants that may cause discomfort for building occupants.
- Helps neutralize some odors in commercial spaces, creating a more pleasant environment for workers and visitors.
MAINTENANCE
The NPI BAR™ features a patented self-cleansing design. The Venturi Emission posts with tungsten needles are built to reduce buildup over time. This design helps maintain consistent ion output without frequent manual cleaning. Check the system periodically to ensure proper operation and inspect emission points for any debris. The posts can be wiped gently with a soft cloth or airbrushed when needed. The modular setup allows easy access for inspection when installed in RTUs, AHUs, or ductwork.Frequently Asked Questions
Have questions about the NPI BAR™ and how it can improve air quality in your commercial building? Below are answers to common questions about this bi-polar ionization system.- How does the NPI BAR™ clean the air in my building? The system creates positive and negative ions that attach to airborne particles and allergens. These particles then clump together and become large enough for your filters to catch more easily.
- What size HVAC systems can the NPI BAR™ work with? The NPI BAR™ is designed for commercial RTUs and AHUs ranging from 7.5 tons to 150 tons. Multiple bars can connect for larger systems.
- Can I install multiple NPI BAR™ units in one system? Yes. The modular design allows multiple units to connect under a single 24V connection. This gives you flexibility for larger commercial applications. The Smart Rack™ is available for a convenient and professional install to provide multiple rows set up for large commercial systems.
- What voltage options are available for the NPI BAR™? The system comes in three dedicated voltage models: 24 volt, 120 volt, and 240 volt. Choose the option that matches your building’s electrical setup.
- Does the NPI BAR™ require a lot of maintenance? The patented self-cleansing design reduces maintenance needs. The Venturi Emission posts are built to resist buildup, though periodic inspection is still recommended. The LED indicator lights allows for quick visual checks to confirm the system is operating.
